Name: High Precision Pick And Place Machine Charmhigh Yamaha Electronics Production Machinery
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : CHM-751

Certification : CE,RoHS,FCC,SGS

Place of Origin : China

MOQ : 1 set

Price : Price Negotiable

Payment Terms : T/T

Supply Ability : 20 sets per month

Delivery Time : within 15 working days

Packaging Details : wooden case

Weight : 540kg

Mounting Head Quantity : 6

Air Supply : 0.5MPa ~0.7MPa

Component Height : 12mm

PCB Thickness : 0.6mm~3.5mm

PCB Conveying : 3-section-rail automatic conveying， PCB support

Transmission System : Ground Ball screw + linear guide (Y axis with double screws)

Feeding System : 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)

Contact Now

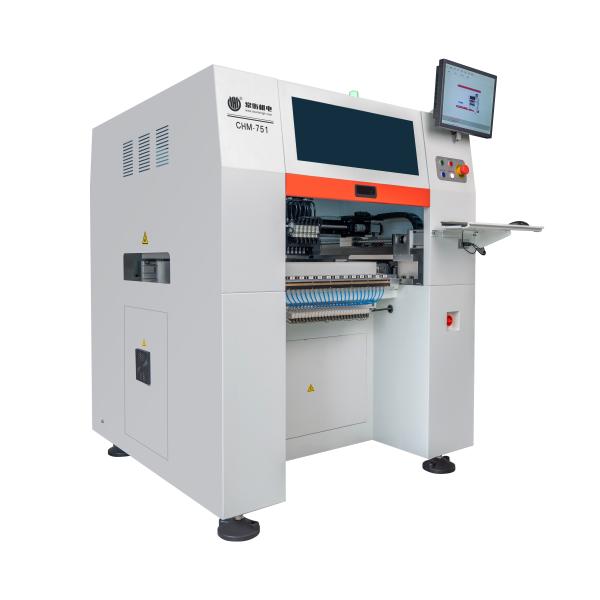

High Precision pick and place machine Charmhigh yamaha electronics production machinery

Dimensions	1280mm(L)×1190mm(W)×1470mm(H)
Weight	540kg
Power Supply	AC220V (50Hz, single phase), 2.8kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Japan PISCO Vacuum generator
Mounting Head Quantity	6
Mounting Speed	18400CPH (optimal) IPC9850: 13400CPH
Mounting Accuracy	(XY)±0.05mm CPK≥1.0
Control Accuracy	5μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	400mm(L)×350mm(W) (Standard) 800mm(L)×350mm(W) (Optional)
PCB Conveying	3-section-rail automatic conveying, PCB support
Nozzle Change	Automatic nozzle change (19-hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	Ground Ball screw + linear guide (Y axis with double screws)
Feeding System	50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2
