Product Description:
SMT Pick And Place Machine
The SMT Pick and Place Machine is a superior, state-of-the-art printed circuit board placement machine which is designed to handle a wide variety of electronic components. It is capable of handling components with sizes ranging from 0201 to 5050 as well as SOT, SOP, QFP, QFN, and BGA components. This machine can handle printed circuit boards with thickness ranging from 0.6mm to 3.5mm and with sizes ranging from 350mm(L)x270mm(W) (Standard) to 600mm(L)x350mm(W) (Optional).
The SMT Pick and Place Machine is equipped with a 50 Yamaha 8mm Standard Pneumatic/electric Feeder Stacks, 4 Snapshot Cameras, 1 IC Camera, and 2 Mark Cameras for efficient and accurate placement of components on the PCBs. It is capable of accurately placing components on the PCBs with high precision and without any errors. This allows for the production of highly reliable products with minimal wastage. This machine is ideal for production line applications and is suitable for the mass production of PCBs with high levels of accuracy and reliability.
The SMT Pick and Place Machine is a perfect choice for those looking for an efficient and reliable Printed Circuit Board Placement Machine or Electronic Component Placement Machine. Its superior design and features make it the ideal choice for mass production of PCBs with high accuracy and reliability.
Features:
- Product Name: SMT Pick And Place Machine
- Vision System: Snapshot Camera×4；IC Camera×1；Mark Camera×2

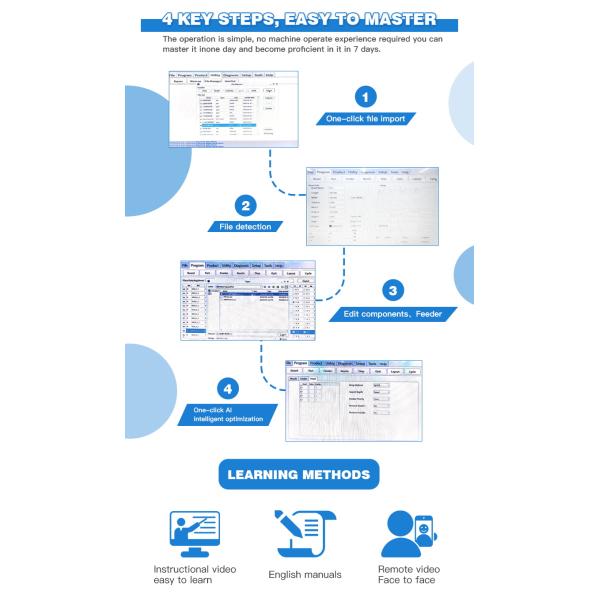

- Control System: Built-in Industrial Computer (Windows 7)
- Transmission System: Ball Screw + Linear Guide
- Component Type: 0201/ 0402/ 0603～5050/ SOT/ SOP/ QFP/ QFN/ BGA, Etc.
- Feeding System: 50 Yamaha 8mm Standard Pneumatic/electric Feeder Stacks
- Surface Mount Technology Assembler
- Printed Circuit Board Assembling Machine
Technical Parameters:
| Parameter | Description |
| Component Type | 0201/ 0402/ 0603～5050/ SOT/ SOP/ QFP/ QFN/ BGA, Etc. |
| Mounting Head Quantity | 4 |
| Control System | Built-in Industrial Computer (Windows 7) |
| Mounting Speed | 11500CPH(optimal) IPC9850:8850cph |
| Vision System | Snapshot Camera×4 ；IC Camera×1；Mark Camera×2 |
| Feeding System | 50 Yamaha 8mm Standard Pneumatic/electric Feeder Stacks |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Transmission System | Ball Screw + Linear Guide |
| PCB Thickness | 0.6mm~3.5mm |
Packing and Shipping:
The SMT Pick and Place Machine is packaged and shipped using the following methods:
- The machine is securely packaged in bubble wrap and placed inside a sturdy cardboard box.
- The cardboard box is reinforced with extra padding at the corners and bottom.
- The box is then securely sealed with packing tape.
- The box is labeled with the customer's shipping address and other relevant information.
- The box is shipped via a reliable courier service.
