Full-automatic Pick and Place SMT Machine CHM-751 Neoden SMT Feeder LED Making Machines

Name: Fullautomatic Pick and Place SMT Machine CHM751 Neoden SMT Feeder LED Making Machines
Brand: Charmhigh
Price: 15500 USD

Wholesale Full-automatic Pick and Place SMT Machine CHM-751 Neoden SMT Feeder LED Making Machines from china suppliers

Brand Name : Charmhigh

Model Number : CHM-751

Certification : CE、FCC、SGC、ISO

Place of Origin : China

MOQ : 1 set

Price : USD15500-USD15600

Payment Terms : T/T

Supply Ability : 20 set a month

Delivery Time : 15 work days

Packaging Details : Wooden packing

Dimensions : 1280mm(L)×1190mm(W)×1470mm(H)

Weight : 540kg

Power Supply : AC220V (50Hz, single phase), 2.8kW

Mounting Head Quantity : 6

Mounting Speed : 17000cph (optimal) IPC9850: 12000CPH

Control Accuracy : 5μm

Feeding System : 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder)

Contact Now

Full-automatic Pick and Place SMT Machine CHM-751 Neoden SMT Feeder LED Making Machines

Our company's pick and place machine software was developed by ourselves.

The software is available in English.

And our software will be updated, as soon as there is an update

The salesman will send new software to your mailbox.

Full-automatic Pick and Place SMT Machine CHM-751 Neoden SMT Feeder LED Making Machines

The machine has one year warranty, lifetime maintenance.

We have a professional after-sales team.

As long as there is a problem with the machine within one year after purchase,

We will repair it for free.

If there is a need to replace the accessories, we will send them to your hands for free.

FAQ:

Q:Does your machines have quality certificate?

A:Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights, and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.

Q:Is it hard to use these machines?

A:No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.

Q:This is the first time I use this kind of machine, is it easy to operate?

A:Yes. There are English manual and guide video that show you how to use machine.If there is any doubt in the process of operating the machine, please feel free contact us.We provide overseas distance learning services

Q:What we can do for you?

A:One-stop SMT Solution Supplier; Reliable SMT Partner

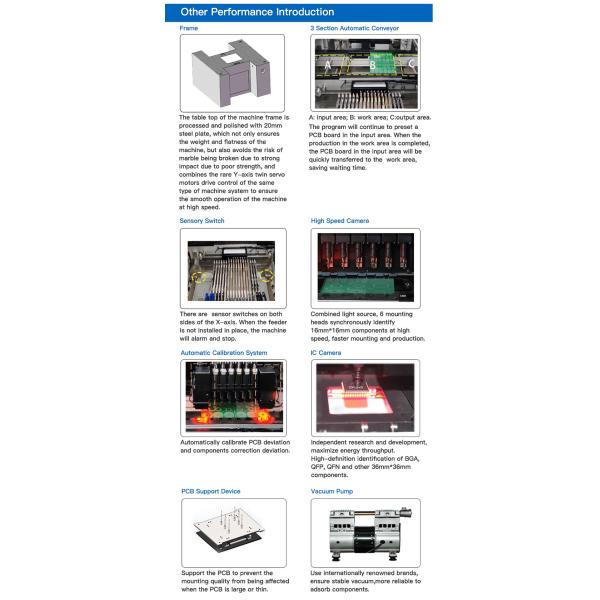

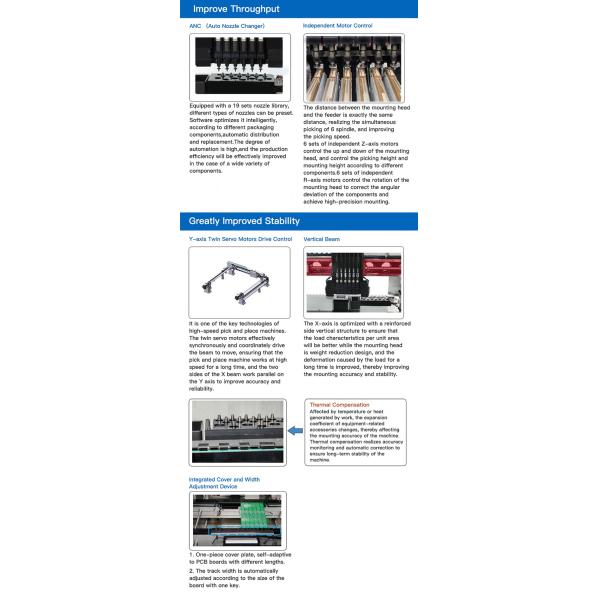

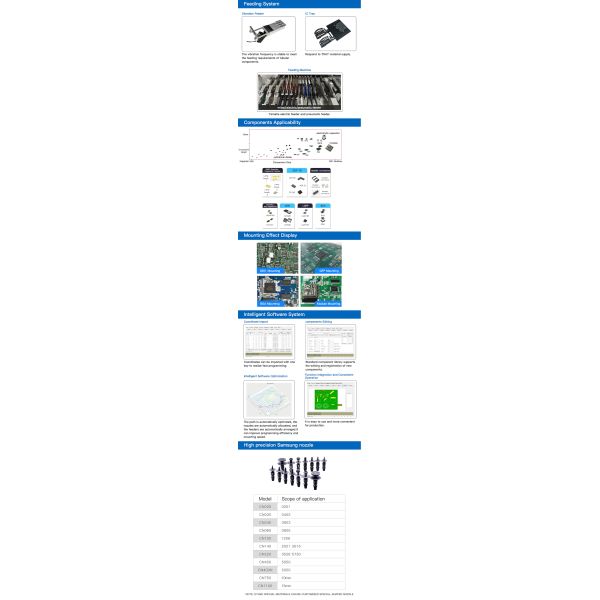

Full-automatic Pick and Place SMT Machine CHM-751 Neoden SMT Feeder LED Making Machines Images
