Charmhigh Smt High Precision Smd LED Pick And Place Machine For PCB ASSEMBLY

Product Categories
HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.
Contact Now

Charmhigh Smt High Precision Smd LED Pick And Place Machine For PCB ASSEMBLY

Brand Name : Charmhigh

Model Number : CHM-861

Certification : CE

Place of Origin : Changsha,China

MOQ : 1item

Price : Negotiable Price

Payment Terms : credit card,PayPal,T/T

Supply Ability : 200 per month

Delivery Time : 15 work days

Packaging Details : wooden box

Name : High speed pick and place machine

Brand : Charmhigh

Mounting Head Quantity : 8

Vacuum Generation : Japan PISCO vacuum generator

Mounting Speed : 39000cph (optimal); IPC9850：26000cph

PCB Size : 450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional)

Weight : 1600kg

Component Type : 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

Mounting Accuracy : ±50μm CPK≥1.0（XY）

PCB Conveying : 3-section-rail automatic conveying, PCB support

Feeding System : 100 NXT 8mm standard feeder stacks

Contact Now

Charmhigh Smt High Precision Smd LED Pick And Place Machine For PCB ASSEMBLY

Machine advantages:
1. Mounting Accuracy:±50μm, cpk≥1.0
2. Mounting 9850 test board: 24000-25000cph
39000CPH (optimal speed)
3. Mounting head : 8
4. Weight :1600kg (The machine runs more stably)
5. Z-axis motors :6 (6 Heads Capable of Picking Components Simultaneously),Angle motor:6
6. X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors)
7. Automatic nozzle change system

CHM-861 Specifications
Dimensions 1600mm(L)×1430mm(W)×1530mm(H)
Weight 1596kg
Power Supply AC380V (50Hz, three phase), 4.5kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 8
Mounting Speed

39000cph (optimal)
IPC9850:26000cph
Mounting Accuracy ±50μm CPK≥1.0(XY)
Control Accuracy 4μm
Component Height 12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size

450mm(L)×350mm(W) (standard);
1200mm(L)×350mm(W) (optional)
PCB Conveying 3-section-rail automatic conveying, PCB support
Nozzle Change Automatic nozzle change (37-hole nozzle library)
Control System

Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System

100 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder)
Vision System

Fly camera×8 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
Mark camera×2


Question: Can your 861 pick and place machine use Fuji NXT original feeder?
Answer: Our 8-series pick and place machine is 100% compatible with the original NXT feeder. The NXT feeder has a fast feeding speed and high precision. For example, the feeding speed of the third-generation 8mm feeder is as high as 30 times per second, and the feeding accuracy is ±0.03mm. Using this kind of feeder, in the case of a small number of feeders and a large number of mounting heads, continuous feeding has a great advantage.

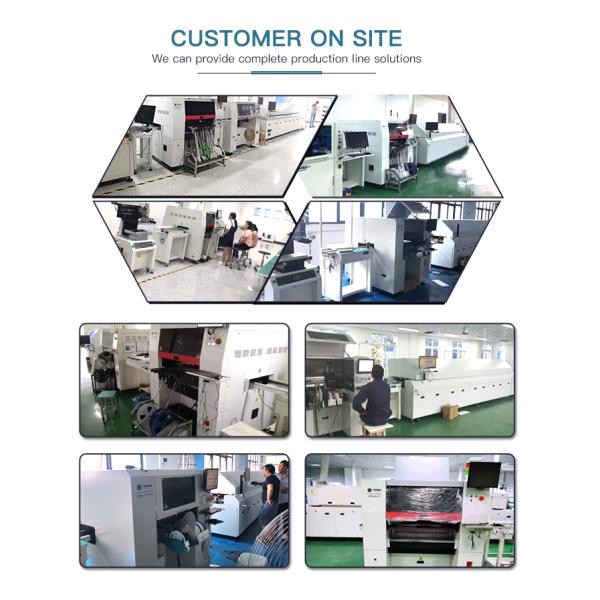

Charmhigh Smt High Precision Smd LED Pick And Place Machine For PCB ASSEMBLY

Charmhigh Smt High Precision Smd LED Pick And Place Machine For PCB ASSEMBLY

Notes
1.Machines need keeping away from the humid environment and dust, or which will get on electrical shock and fire.
2.Machines need lying stable platform, or which the shake may lead to reduce the precision and even turn over and personal injury.
3.Don’t dismounting the machines casually, or the machine may be broken.
4.Don’t touch the optical axis and the mounting head, or which may damage the machine and hurt yourselves.
5.Make sure the machine engine accordance with the requirements of the standard machine and make sure lie on the ground very well.
Charmhigh Smt High Precision Smd LED Pick And Place Machine For PCB ASSEMBLY
