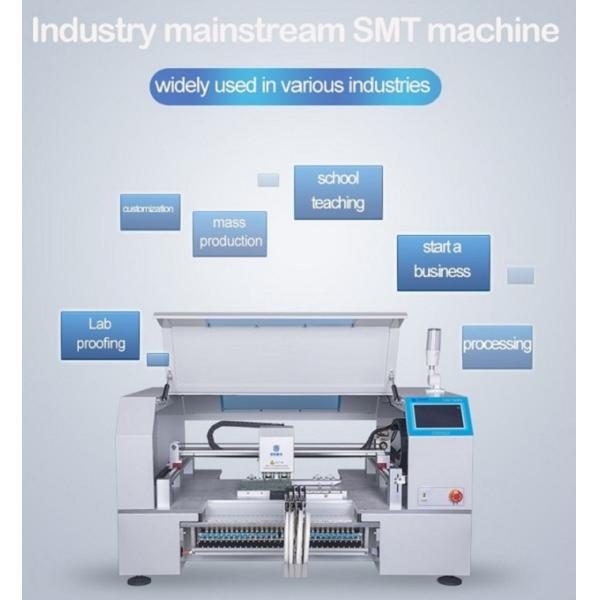

CHM-T560P4 Introduction
This is CHM-T560P4, It is 4 heads capable of 360-degree rotation, automatic correction to pick components ,characterized by 60 feeder stacks, support for Yamaha pneumatic feeders, electric feeders, and stick feeders with tubular components, , automatic positioning through recognition of Mark Point, and integrated operation with built-in industrial computer.
Besides, the X and Y axes of CHM-T560P4 are driven by high-voltage stepping motor. And its Z axis is capable of reset detection.
CHM-T560P4 possesses the capability to mount components of different sizes in a range from 0402 to the 22mm*22mm one.
CHM-T560P4 main features
1. Model number: CHM-T560P4
2. main configuration: type of desktop + 4-head 60 feeders + built-in pc + built-in linux system embedded + closed circuit control engine with coded + Up-looking and down looking cameras + linear track + automatic calibrate pcb + touch-sensitive screen
3. feeder: 2 options: yamaha cl feeder/electric feeder (feeders buy separately)
4. PCB clamping area: 400*290mm
5. Component: 0402-5050, led, sot, sop, qfn, bga... etc.
Demo video
https://youtu.be/Y1f0x5NX3dY CHM-T560P4 of Hunan Charmhigh Electromechanical Equipment Co., Ltd
Specifications
| CHM-T560P4 Specifications |
| Dimensions | 1180mm(L)×870mm(W)×640mm(H) |
| Weight | 140kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase);
400W |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed | 8000cph(optimal without vision detection);
5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×290mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |

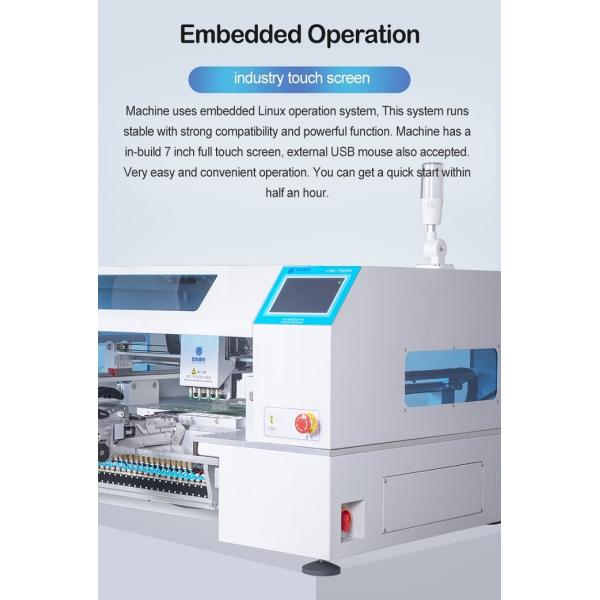

| Control System | Built-in computer (embedded Linux operating system),
7-inch touch screen |
| Drive System | X&Y-axis driven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Feeding System | 60 Yamaha 8mm standard pneumatic feeder stacks
(also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Max PCB SIze is 400mm*290mm
Our Service
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.
The machine has a warranty period of 1 year from the time of purchase and lifetime service.
Each machine 100% test well before ship out.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.
