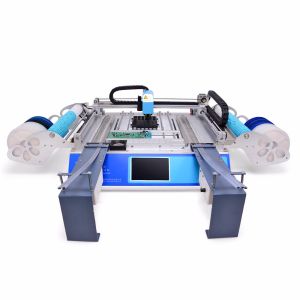

Automatic Nozzle Change 3.5mm SMD Components Soldering Machine
CHM-T48VB is an update version of CHM-T48VA, which included dual side feeders with total 58pcs (left 29pcs + right 29pcs). With more feeders it can install more different kinds of materials.
| CHM-T48VBSpecifications |
| Dimensions | 1310mm(L)×710mm(W)×340mm(H) |
| Weight | 49kg |
| Power Supply | AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 300W |
| Air Supply | No external air supply required |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 2 |
| Mounting Speed | 6000cph(optimalwithout vision detection); 4000cph (optimal with vision detection) |
| Control Accuracy | 0.025mm |
| Component Type | 0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～345mm(L)×360mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System | Built-in computer(embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control realized by encoder; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration; tape puller automatic reset supported |
| Transmission System | Synchronous belt + polished rod +linear guide |
| Feeding System | 58 tape feeding stacks(8mm:44,12mm:8；16mm:4,24mm:2；customization supported), 14 preset general IC stacks, worksurface custom IC trays and stick feeder supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Closed loop control system 4 axes can be linked,real-time jog operation, increased encoder closed-loop drive,and never lose step
